ABOUT

Evaporative air conditioning systems provide a revolutionary alternative to refrigerated systems. They operate in a very simple and natural way , using the evaporation of water in air.

Refridgerated air-conditioning systems recycle cooled air around the house, but this only works when the doors and windows are shut, allowing no fresh air in. Evaporative air-conditioning systems work best when windows and doors are left open, so you can enjoy fresh cooled air flowing freely through your home without the need to close up the house and feel stuffy.

Evaporative cooling is a 100% fresh air system and relies on airflow. It works by picking up heat from the air outside the unit and passing it through a panel of moistened pads, A pump circulates water from the reservoir onto the cooling pads, which remain completely saturated during operation. As the heated air passes through the pads the air is cooled by evaporation which then provides cooled natural air to your home at a fraction of the cost.

Evaporative cooling is a very simple principal.

Warm air in a room is drawn into the air conditioner, passed through damp cooling pads, and blown back into the room.

As the warm air is forced through the cooling pads, evaporation happens. This  brings down the temperature of the air. The air will normally be cooled to a comfortable 22-25 degrees.

Evaporative Cooling uses a network of air conditioning ducts to distribute the cooled air. Similar to a ducted reverse cycle system.

Quiet Operation

Due to the fact that no refrigeration is required, evaporative cooling systems are very quiet to operate.

Power Efficiency

When it comes to efficiency, nothing beats evaporative air, It is estimated that the running costs are approx 15% of the equivelent to a refridgerated system.

Efficient Water Management

Evaporative cooling uses water to cool air. Unlike the split system and ducted reverse cycle, which uses a refrigerant.

SERVICES

INSTALLATIONS

  • Brand new Evaporative Air System
  • Fast installation
  • Experienced & Licensed Installers

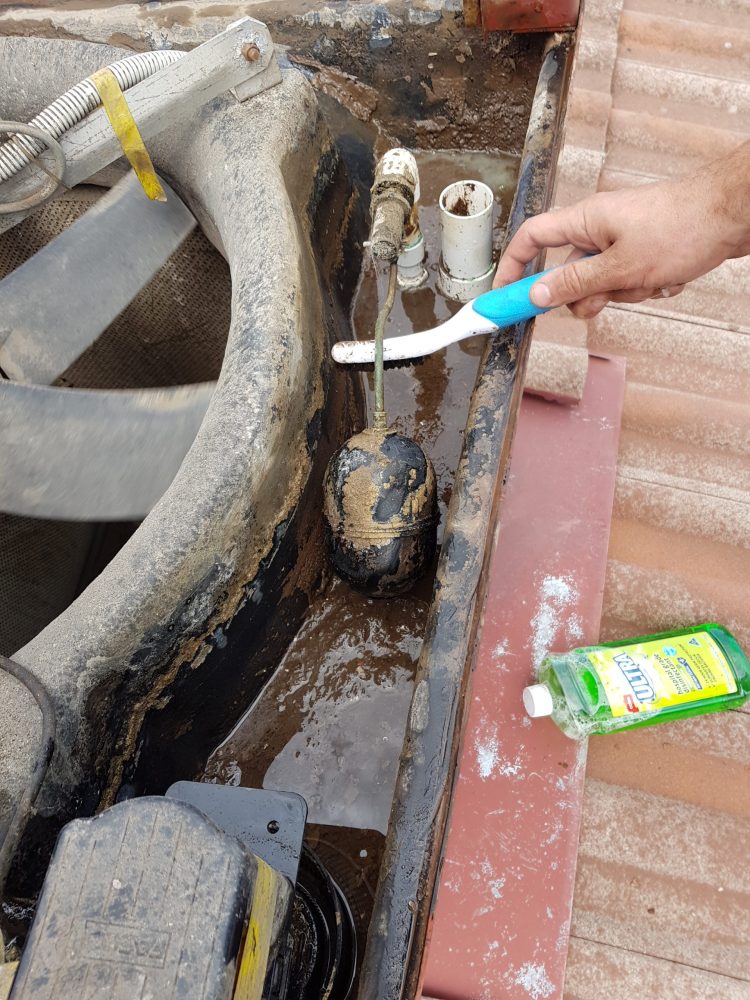

MAINTENANCE

  • Clean filter pads
  • Clean and disinfect the water sump
  • Clean casing
  • System functionality check and report

REPAIRS

  • System inspection
  • We stock a wide range of spare parts
  • Fully-licensed evaporative air repairers

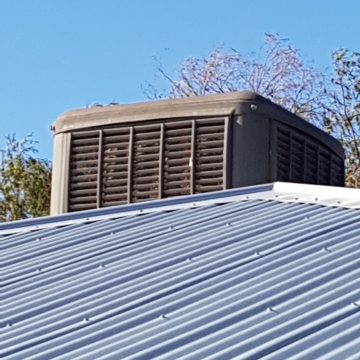

Evaporative Air Cooling Systems

For small to medium households
evaporative air cooling system for small families

Web special price:

$1,990

including replacing your old unit*

+ FREE LCD Control Panel

Model AZL 16

Features

Colour Options:

Cream & Charcoal

  • Aolan, Designed for Perth Conditions
  • Perth Metro Install & Repair Network
  • Has a DC inverter for high energy efficiency
  • Easy changeover from any brand

Electrical Source (V/Hz): 240
Power(kW): 0.75
Motor: 240V/50Hz/1-phase
Rated Current (A): 4.8
Airflow (m3/h): 7,000
Fan Type: Axial
Fan Speed: Variable speed
Max Pressure (Pa): 160
Dropper size (mm): 550×550
Noise (dBA):≤75
Dimensions WxDxH (mm): 1030x1030x883
Pad Size: 630x738x100
Weight – dry (kg): 49
Operational Weight (kg): 67
Controller: LCD Control panel

Standard inclusions:

  • Drain Valve
  • Water level sensor
  • 2 year parts and labour warranty
  • 100mm low odour pads
For medium to large households
Evaporative air cooling system for small households

Web special price:

$2,290

including replacing your old unit*

+ FREE LCD Control Panel

Model: AZL 18

Features

Colour Options:

Cream

  • Aolan, Designed for Perth Conditions
  • Perth Metro Install & Repair Network
  • Has a DC inverter for high energy efficiency
  • Easy changeover from any brand

Electrical Source (V/Hz): 240
Power(kW): 1.1
Motor: 240V/50Hz/1-phase
Rated Current (A): 5.6
Airflow (m3/h): 10,000 @ 80Pa
Fan Type: Axial
Fan Speed: Variable speed
Max Pressure (Pa): 190
Dropper size (mm): 650×650 (adapter available)
Noise (dBA):≤75
Dimensions WxDxH (mm): 1150x1150x960
Pad Size: 620x825x100
Weight – dry (kg): 49
Operational Weight (kg): 80
Controller: LCD Control panel

Standard inclusions:

  • Drain valve
  • Winterising Damper
  • Water Level Sensor
  • 2 year parts and labour warranty
  • 100mm low odour pads

WHY US?

    Excellent customer service

Perth Evaporative Air Cooling are the experts in evaporative cooling systems and we aim to:

  1. Understand your cooling needs and provide you with the best solution
  2. Save you more money
  3. Impress you with our amazing customer service and attention to detail

    Products

Evaporative air cooling have carefully selected a broad range of Innovative and Economical systems designed for West Australian conditions.

Our Sales Consultants can assist to match the product suited to you.

    Service

It’s our attention to details that will ensure product longevity and maximum savings.

Contact Us

Sales & Repairs Hotline: (08) 9203 2000

Perth Evaporative Air Cooling
460 Victoria Rd Malaga WA 6090

Map & Directions

The fine print

All prices are based on:

  • GST is included
  • Perth metro installation
  • $500 deposit with rest payable once installed
  • Payment by EFT, Visa, Mastercard, and Amex
  • Single storey residential homes with unrestricted access
  • Standard installation based on information below

* Standard replacement/changeover – Installation includes replacing the roof evaporative unit onto an existing 550 x 550mm duct and flashing. Includes disconnect/reconnect of compliant electrics and install of control pad.

The price does not include replacing any ducting, roof flashing or vents. Additional costs apply if converting non-standard sized dropper to 550 x 550mm. If other components require replacement to ensure proper system operation, additional charges will apply.
